Model |
Dimensions (mm) |
Weight (gr) |
Carrying Capacity |
Materials |
|
PT-185 (No:5) |
585×790×655–665 |
6626–9258 |
30 kg |
Glass Fiber Reinforced PP |
|

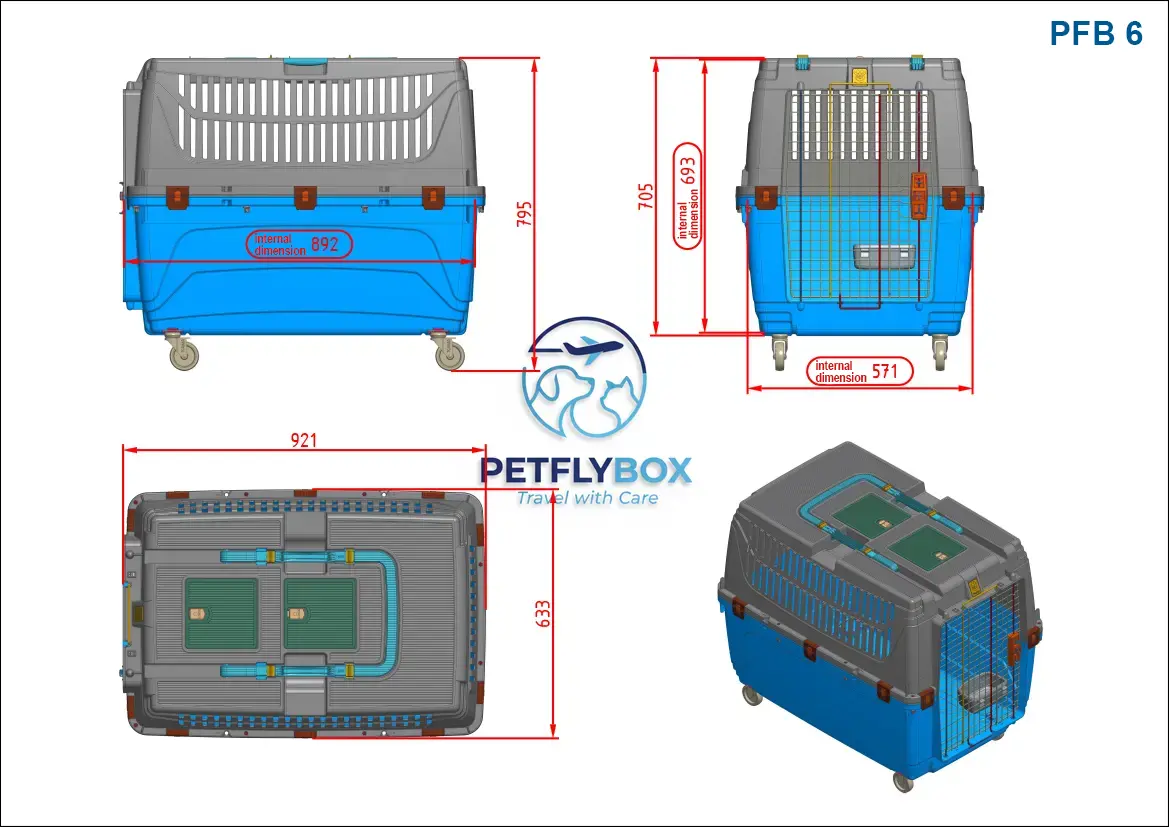

PT-190 (No:6) |
892×571×~750 |
≈7200 |
40 kg |
Glass Fiber Reinforced PP |
|

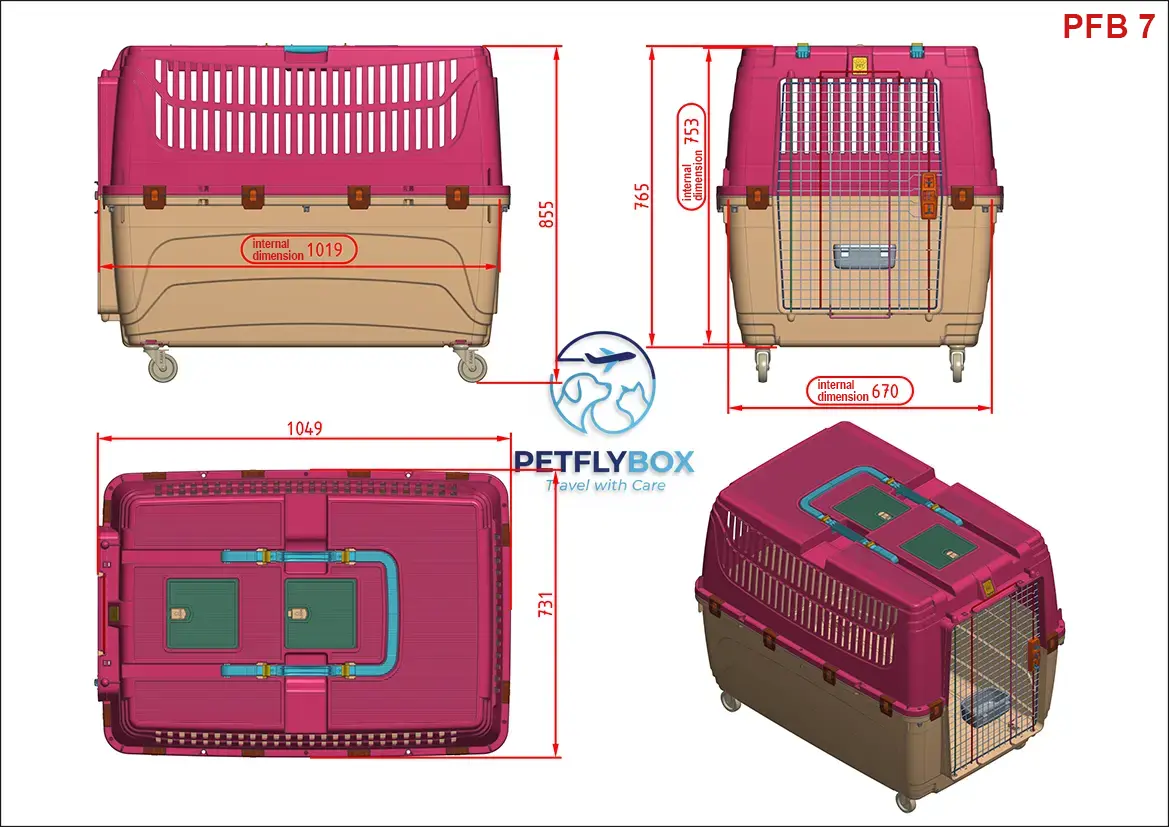

PT-195 (No:7) |
1019×670×~850 |
≈8600 |
45–50 kg |
Glass Fiber Reinforced PP |
Teknik Özellikler / Technical Specifications
IATA-CR82 compliant design
Impact-resistant PP-GF5 material
Includes ventilation panels, water bowl, and safety locks
Galvanized steel door (1,120 g)
4 pcs Ø75 mm wheels
Colors: Matte grey, dark grey, yellow details
Injection molding – dual body structure
Capacity: for dogs 25–50 kg
Application
Designed for safe air, road, and sea transport of pets, especially large dog breeds.
Not / Note
Produced in Turkey with full compliance to international IATA standards for pet transport.
